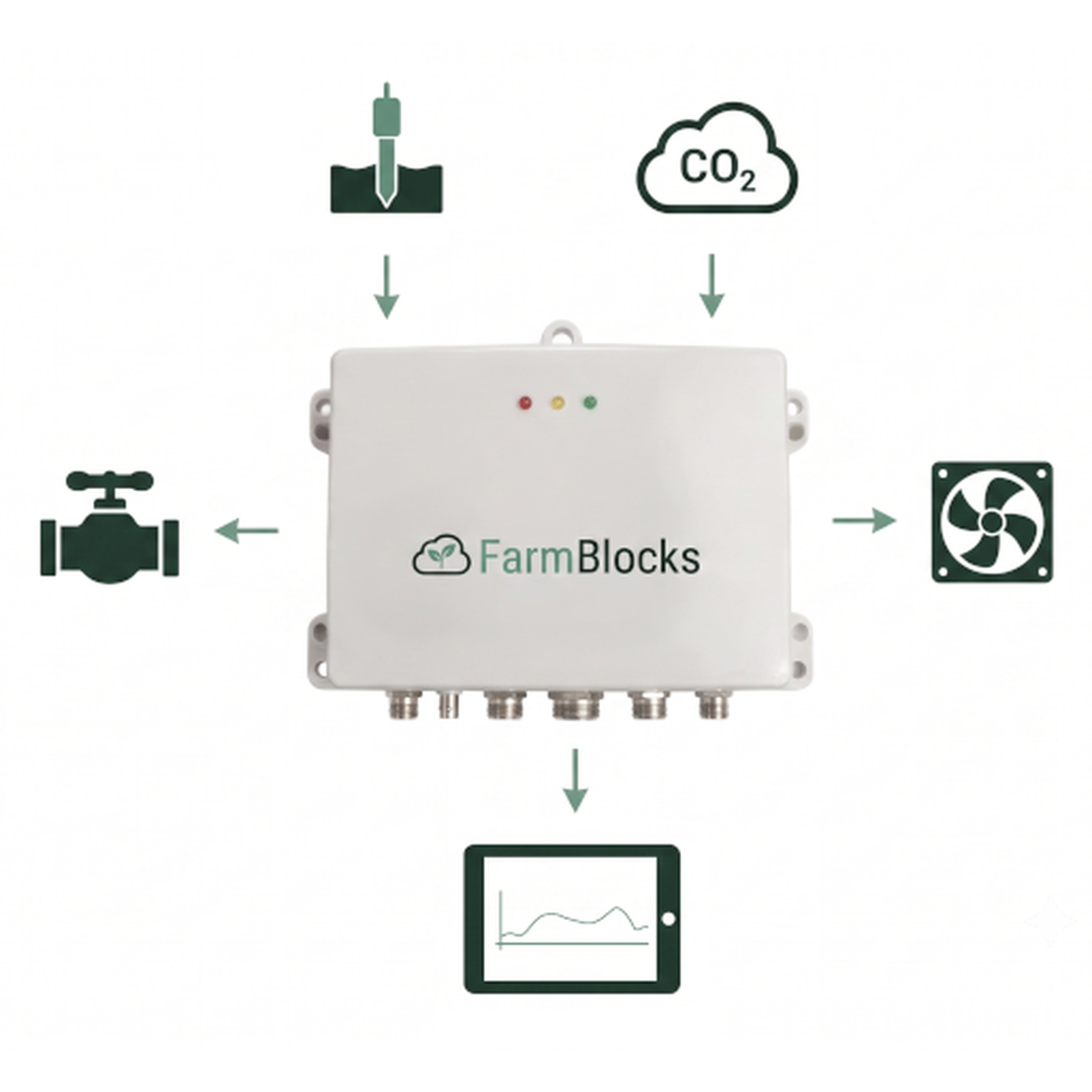

The FarmBlocks Controller is the central hub of your smart farm automation system. It connects your sensors and actuators via M12 ports and BNC inputs, communicates with the FarmBlocks cloud platform over Wi-Fi, and executes your no-code automation rules — all in a compact, wall-mountable enclosure.

Key Features

• Multiple M12 sensor/actuator ports for EC, NTC, CO₂, humidity, and more
• BNC input for pH electrodes
• Wi-Fi connectivity to the FarmBlocks cloud platform
• No-code automation rules via the web and mobile app
• Relay and 12V actuator drive outputs (valves, pumps, fans)
• OTA (over-the-air) firmware updates
• Compact enclosure suitable for wall or panel mounting

Technical Specifications

• Power Input: 240/110V AC
• Sensor Interfaces: 2x M12 Digital Ports (air/soil sensors), 1x M12 Analog Port (EC / Temperature), 1x BNC (pH/ORP)
• Actuator Interfaces: 4x 12V DC Outputs
• Connectivity: 2.4 GHz Wi-Fi (802.11 b/g/n), BLE for provisioning
• Operating Environment: 0 to 50 °C, 10% to 90% RH (non-condensing)
• Enclosure: ABS Plastic, Wall-mountable
